Ezekiel's Wheel MIDI setup

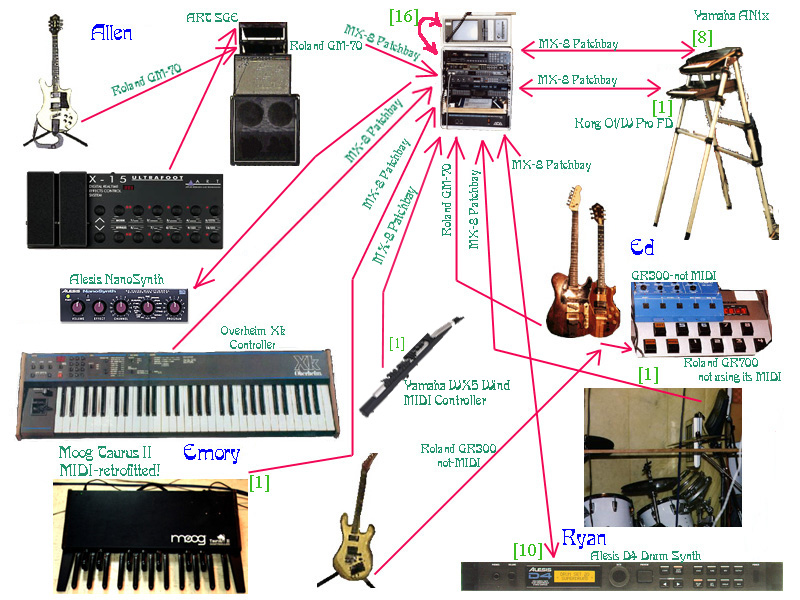

This is a little busy, but here is our MIDI setup, and yes, we do set this up on stage!

Red lines indicate connections. All of them are MIDI lines EXCEPT for the lines coming from the four guitars. Those are proprietary Roland connections to either their guitar synthesizer or the GM-70 Guitar-to-MIDI converter. We have two of them: One for Allen's S300 and one for Ed's Fender Telecaster. Allen's is in the little rack on top of his stack. Ed's is in the main synth rack along with the rest of our rack mount gear.

Dark Green text indicates either the name of a piece of gear or where a MIDI line plugs in.

Light Green numbers in square brackets (i.e. "[1]") indicate MIDI channel numbers. Moog Taurus XL (MIDI-fied)! ART X-15 Ultrafoot controller Roland GR-700 Guitar Synth Kramer Focus 1000 (highly hacked) Fender Deluxe Reverb/Art SGE/Roland GM-70 Guild S300 Drums! Ed's Synth Rack Ed's Synths/ Korg O1/W / Kawai K3 Ed's rebuilt Telecaster Ed's GR808 Guitar-Synth Guitar Alesis D4 Drum Synth Emory's Oberheim OBXk Controller
